electrical DOCUMENTATION

Hillsborough

December 2019

WARNING – ELECTROCUTION HAZARD.jpg

Abbreviations and Symbols

Abbreviations and Symbols

First Floor.jpg

Second Floor.jpg

Ground Level.jpg

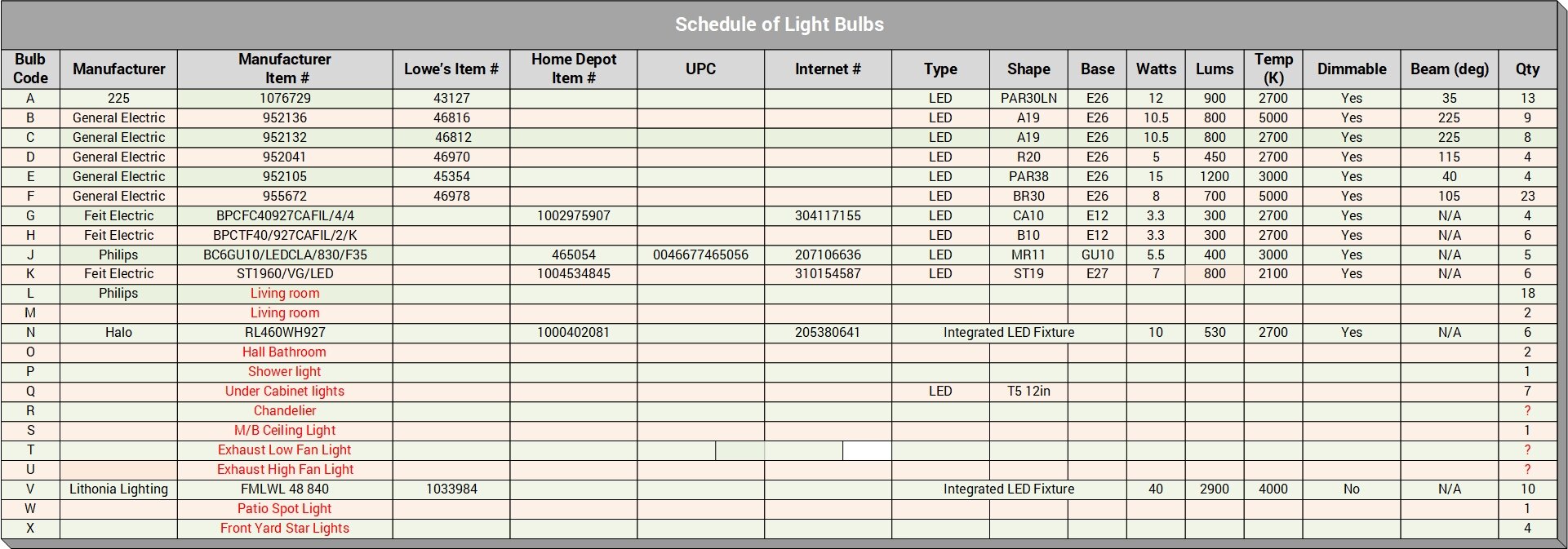

Schedule of Light Bulbs .jpg

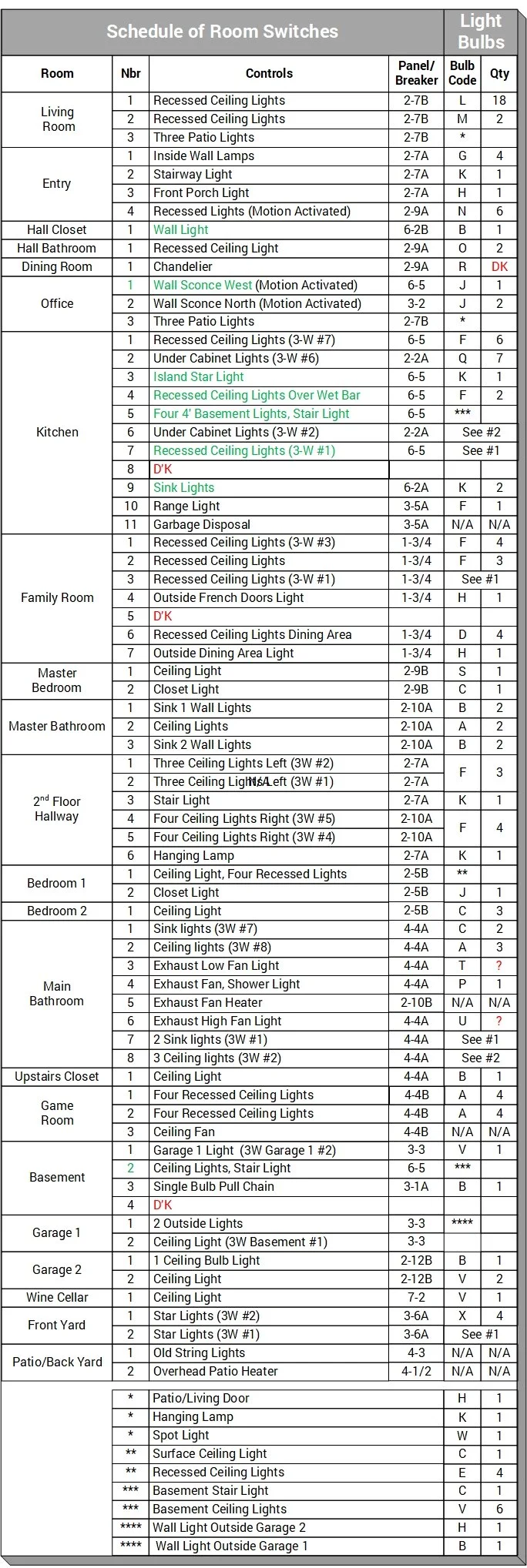

Schedule of Room Switches .jpg

Schedule of Circuit Breaker Panels.jpg

Schedule of Circuit Breakers.jpg

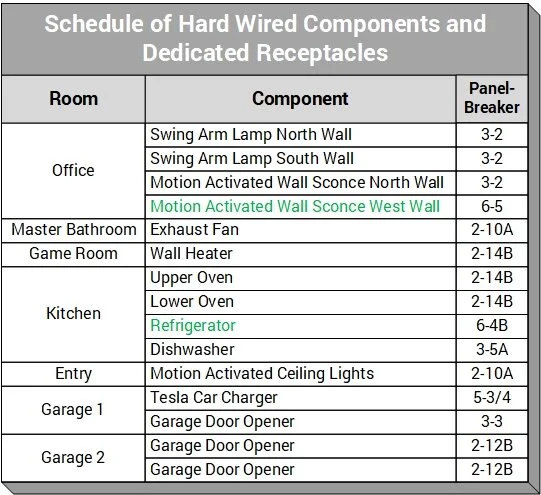

Schedule of Hard Wired Components and Dedicated Receptacles.jpg
